[1]:

import anndata as ad
import celltypist
from celltypist import models
import scanpy as sc
import numpy as np

/data_nfs/og86asub/netmap/netmap-evaluation/netmap/.pixi/envs/default/lib/python3.12/site-packages/celltypist/classifier.py:11: FutureWarning: `__version__` is deprecated, use `importlib.metadata.version('scanpy')` instead
  from scanpy import __version__ as scv

[2]:

np.random.seed(12)

[3]:

## Load adata (prefiltered by cellrange/rhapsody)
adata = sc.read_10x_mtx('netmap/data/blood/rhapsody/rhapsody_out/')

[4]:

[4]:

	gene_ids	feature_types
A1BG	ENSG00000121410.13	Gene Expression
A1BG-AS1	ENSG00000268895.6	Gene Expression
A1CF	ENSG00000148584.17	Gene Expression
A2M	ENSG00000175899.16	Gene Expression
A2M-AS1	ENSG00000245105.5	Gene Expression
...	...	...
ZYG11B	ENSG00000162378.14	Gene Expression
ZYX	ENSG00000159840.17	Gene Expression
ZZEF1	ENSG00000074755.16	Gene Expression
ZZZ3	ENSG00000036549.14	Gene Expression
hsa-mir-423	ENSG00000266919.3	Gene Expression

46998 rows × 2 columns

[5]:

#adata.var = adata.var.reset_index()
#adata.var = adata.var.set_index("gene_symbol")
#data.var.index = adata.var.index.astype(str)
#adata.var = adata.var.set_index('index')
adata.var_names_make_unique()

[6]:

adata.var_names

[6]:

Index(['A1BG', 'A1BG-AS1', 'A1CF', 'A2M', 'A2M-AS1', 'A2ML1', 'A2ML1-AS1',
       'A2MP1--chr12:9228533(-)', 'A3GALT2', 'A4GALT',
       ...
       'ZWINT', 'ZXDA', 'ZXDB', 'ZXDC', 'ZYG11A', 'ZYG11B', 'ZYX', 'ZZEF1',
       'ZZZ3', 'hsa-mir-423'],
      dtype='object', length=46998)

[7]:

# mitochondrial genes, "MT-" for human, "Mt-" for mouse
adata.var["mt"] = adata.var_names.str.startswith("MT-")
# ribosomal genes
adata.var["ribo"] = adata.var_names.str.startswith(("RPS", "RPL"))
# hemoglobin genes
adata.var["hb"] = adata.var_names.str.contains("^HB[^(P)]")

sc.pp.calculate_qc_metrics(adata, qc_vars=["mt", "ribo", "hb"], inplace=True, log1p=True)

[8]:

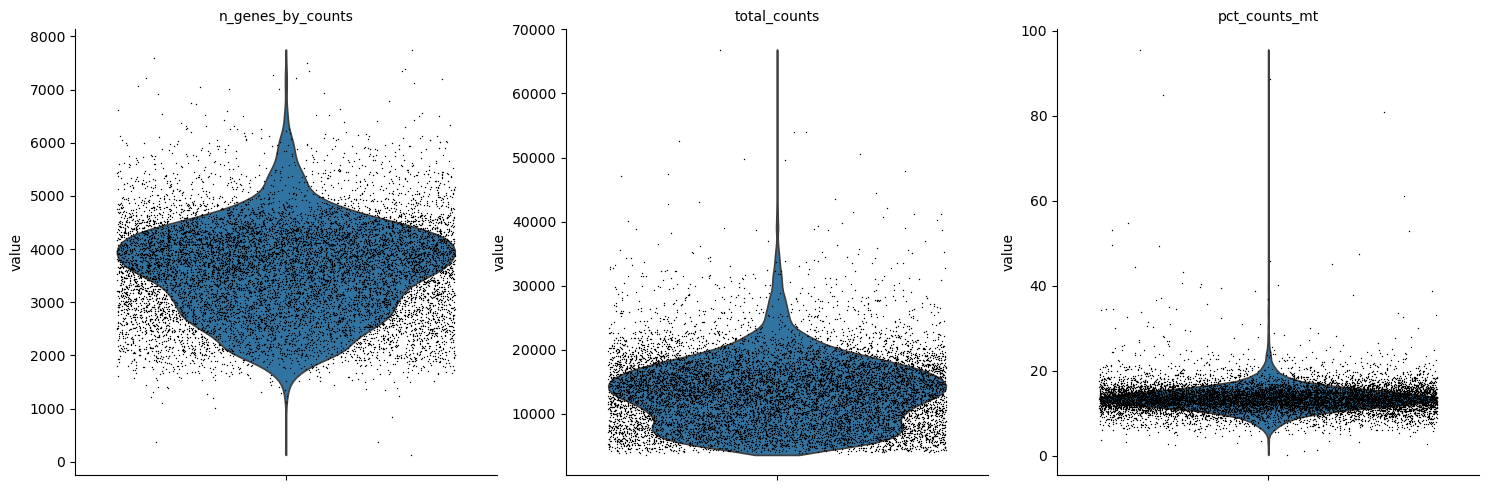

sc.pl.violin(
    adata,
    ["n_genes_by_counts", "total_counts", "pct_counts_mt"],
    jitter=0.4,
    multi_panel=True,
)

... storing 'feature_types' as categorical

../_images/tutorials_1-preprocess-data_7_1.png

[9]:

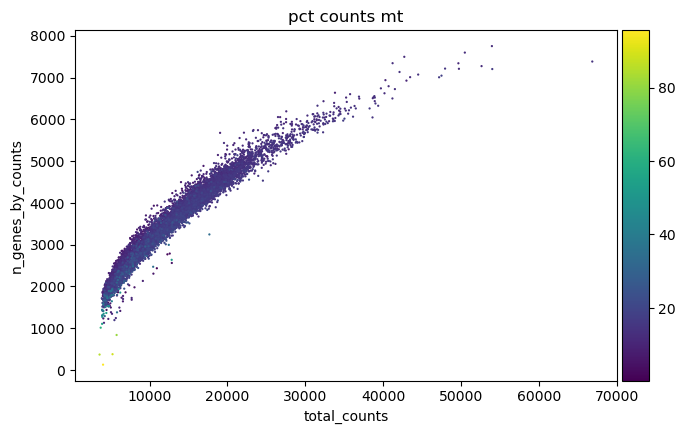

sc.pl.scatter(adata, "total_counts", "n_genes_by_counts", color="pct_counts_mt")

../_images/tutorials_1-preprocess-data_8_0.png

[10]:

sc.pp.filter_cells(adata, min_genes=500)
sc.pp.filter_genes(adata, min_cells=50)
adata = adata[adata.obs.pct_counts_mt<20]

[11]:

sc.pp.scrublet(adata)

[12]:

adata = adata[adata.obs.predicted_doublet == False]

[13]:

# Saving count data
adata.layers["counts"] = adata.X.copy()

[14]:

# Normalizing to median total counts
sc.pp.normalize_total(adata, target_sum = 10000)
adata.layers['count_norm'] = adata.X.copy()
# Logarithmize the data
sc.pp.log1p(adata)

[15]:

models.download_models(model = 'Immune_All_Low.pkl', force_update = True)
model = models.Model.load(model = 'Immune_All_High.pkl')
predictions = celltypist.annotate(adata, model = 'Immune_All_High.pkl', majority_voting = True)

📜 Retrieving model list from server https://celltypist.cog.sanger.ac.uk/models/models.json
📚 Total models in list: 61
📂 Storing models in /data/og86asub/.celltypist/data/models
💾 Total models to download: 1
💾 Downloading model [1/1]: Immune_All_Low.pkl
🔬 Input data has 10925 cells and 21772 genes
🔗 Matching reference genes in the model
🧬 4861 features used for prediction
⚖️ Scaling input data
🖋️ Predicting labels
✅ Prediction done!
👀 Can not detect a neighborhood graph, will construct one before the over-clustering
⛓️ Over-clustering input data with resolution set to 10
🗳️ Majority voting the predictions
✅ Majority voting done!

[16]:

adata = predictions.to_adata()
adata.obs.majority_voting.value_counts()

[16]:

majority_voting
Monocytes                   8252
T cells                     1312
ILC                          611
DC                           341
pDC                          205
B cells                      146
Megakaryocytes/platelets      37
HSC/MPP                       21
Name: count, dtype: int64

[17]:

model = models.Model.load(model = 'Immune_All_Low.pkl')
predictions = celltypist.annotate(adata, model = 'Immune_All_Low.pkl', majority_voting = True)

🔬 Input data has 10925 cells and 21772 genes
🔗 Matching reference genes in the model
🧬 4861 features used for prediction
⚖️ Scaling input data
🖋️ Predicting labels
✅ Prediction done!
👀 Detected a neighborhood graph in the input object, will run over-clustering on the basis of it
⛓️ Over-clustering input data with resolution set to 10
🗳️ Majority voting the predictions
✅ Majority voting done!

[18]:

adata.obs['granular']= predictions.predicted_labels['predicted_labels']

[19]:

sc.pp.highly_variable_genes(adata, n_top_genes=2500)

[20]:

sc.pp.pca(adata)
sc.pp.neighbors(adata)
sc.tl.leiden(adata)

[21]:

sc.tl.umap(adata)

[22]:

sc.tl.leiden(adata, resolution=0.35)

[23]:

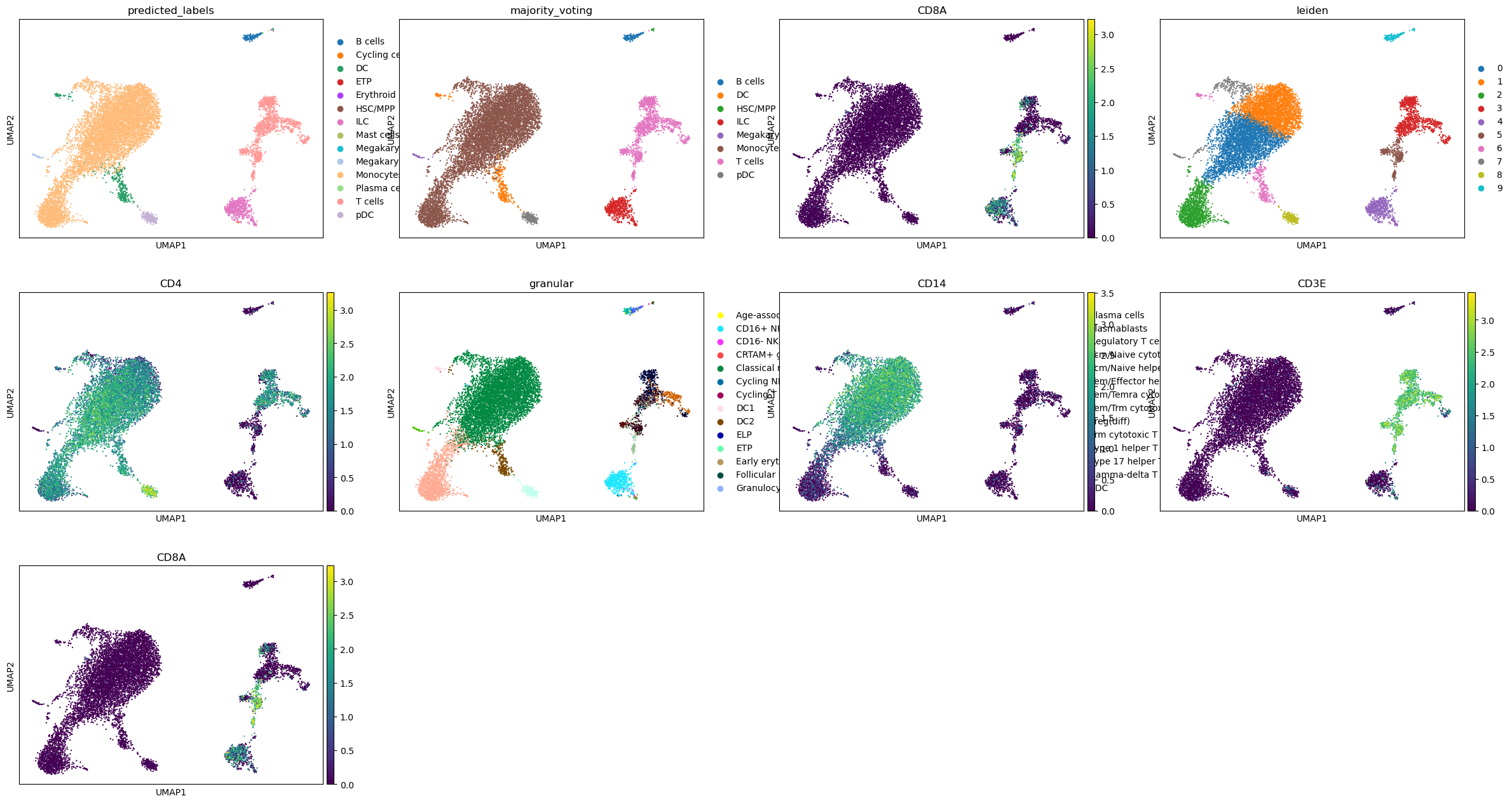

sc.pl.umap(adata, color = [ 'predicted_labels', 'majority_voting', 'CD8A','leiden', 'CD4', 'granular', 'CD14', 'CD3E', 'CD8A'])

../_images/tutorials_1-preprocess-data_22_0.png

[35]:

celltype_mapping_2 = {
    '0': 'cd14+_monocytes',
    '1': 'cd14+_monocytes',
    '2': 'cd14-_monocytes',
    '3': 'cd4+_tcells',
    '4':  'nk_cells',
    '5':  'cd8_tcells',
    '6': 'DC',
    '7': 'cd14+_monocytes',
    '8': 'pDC',
    '9': 'b_cells'}

[37]:

adata.obs['celltype_semi_manual'] = [celltype_mapping_2[c] for c in adata.obs['leiden']]

[38]:

adata = adata[:,adata.var.pct_dropout_by_counts<95].copy()

[39]:

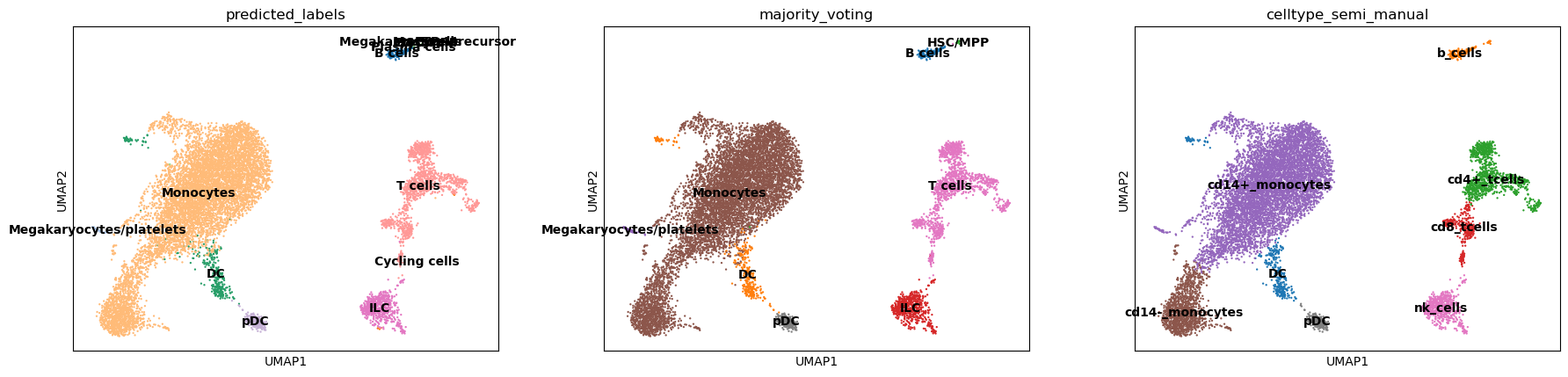

sc.pl.umap(adata, color = [ 'predicted_labels', 'majority_voting', 'celltype_semi_manual'], legend_loc = 'on data')

... storing 'celltype_semi_manual' as categorical

../_images/tutorials_1-preprocess-data_27_1.png

[40]:

adata.X = np.nan_to_num(adata.X)
adata.X[adata.X == np.inf] = 0
adata.X[adata.X == -np.inf] = 0

[41]:

adata = adata[:, adata.var.highly_variable].copy()

[42]:

adata = adata[adata.obs.celltype_semi_manual != 'megakaryocytes'].copy()

[43]:

import pandas as pd
## Use file in github resource folder
pangalao = pd.read_csv('panglaodb_human.csv')
high_ui = pangalao[pangalao['UI']>0.1]['Official gene symbol'].values
adata = adata[:, ~adata.var.index.isin(high_ui)].copy()

[44]:

# Save data set for furter processing
adata.write_h5ad('netmap/data/blood/reprocessed/bd-rhap-rep1.h5ad')

[45]:

adata.obs.celltype_semi_manual.value_counts()

[45]:

celltype_semi_manual
cd14+_monocytes    6971
cd14-_monocytes    1312
cd4+_tcells         964
nk_cells            613
cd8_tcells          347
DC                  342
pDC                 211
b_cells             165
Name: count, dtype: int64

[46]:

[46]:

AnnData object with n_obs × n_vars = 10925 × 1176
    obs: 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'total_counts_mt', 'log1p_total_counts_mt', 'pct_counts_mt', 'total_counts_ribo', 'log1p_total_counts_ribo', 'pct_counts_ribo', 'total_counts_hb', 'log1p_total_counts_hb', 'pct_counts_hb', 'n_genes', 'doublet_score', 'predicted_doublet', 'predicted_labels', 'majority_voting', 'conf_score', 'granular', 'leiden', 'celltype_semi_manual'
    var: 'gene_ids', 'feature_types', 'mt', 'ribo', 'hb', 'n_cells_by_counts', 'mean_counts', 'log1p_mean_counts', 'pct_dropout_by_counts', 'total_counts', 'log1p_total_counts', 'n_cells', 'highly_variable', 'means', 'dispersions', 'dispersions_norm'
    uns: 'scrublet', 'log1p', 'neighbors', 'over_clustering', 'hvg', 'pca', 'leiden', 'umap', 'predicted_labels_colors', 'majority_voting_colors', 'leiden_colors', 'granular_colors', 'celltype_semi_manual_colors'
    obsm: 'X_pca', 'X_umap'
    varm: 'PCs'
    layers: 'counts', 'count_norm'
    obsp: 'connectivities', 'distances'
