Skeletonization and graph-based feature extraction for branching biological structures — vasculature, fibers, neurites, and other network-like objects — from 2D or 3D binary or multi-label segmentation masks.

Maskel is the core algorithm package: thinning, feature extraction, and the batch CLI. It has no napari dependency — for the interactive napari plugin, see napari-maskel. For benchmarks and the HRF-based analysis notebooks, see maskel-evaluations on GitHub.

What it does

Given a 2D or 3D segmentation mask — either a plain binary mask or a multi-object instance segmentation map — from any imaging modality or biological structure, maskel:

1. Optionally preprocesses the binary mask (morphological closing, hole filling)
2. Thins it to a 1-pixel/voxel skeleton (a fast, Numba-parallelized implementation of Lee et al. 1994 thinning)
3. Builds a graph over the skeleton (edges = branches between junctions/endpoints; the raw node table before filtering covers every skeleton pixel, degree-2 pass-through points included — see Node-level features)
4. Optionally prunes short spur branches and cleans up ambiguous triangle junctions
5. Extracts per-branch, per-node, and per-object summary features (length, tortuosity, radius, fractal dimension, ...)

Touching-but-distinct objects in a multi-object mask are always skeletonized independently, never merged.

Examples

2D binary mask

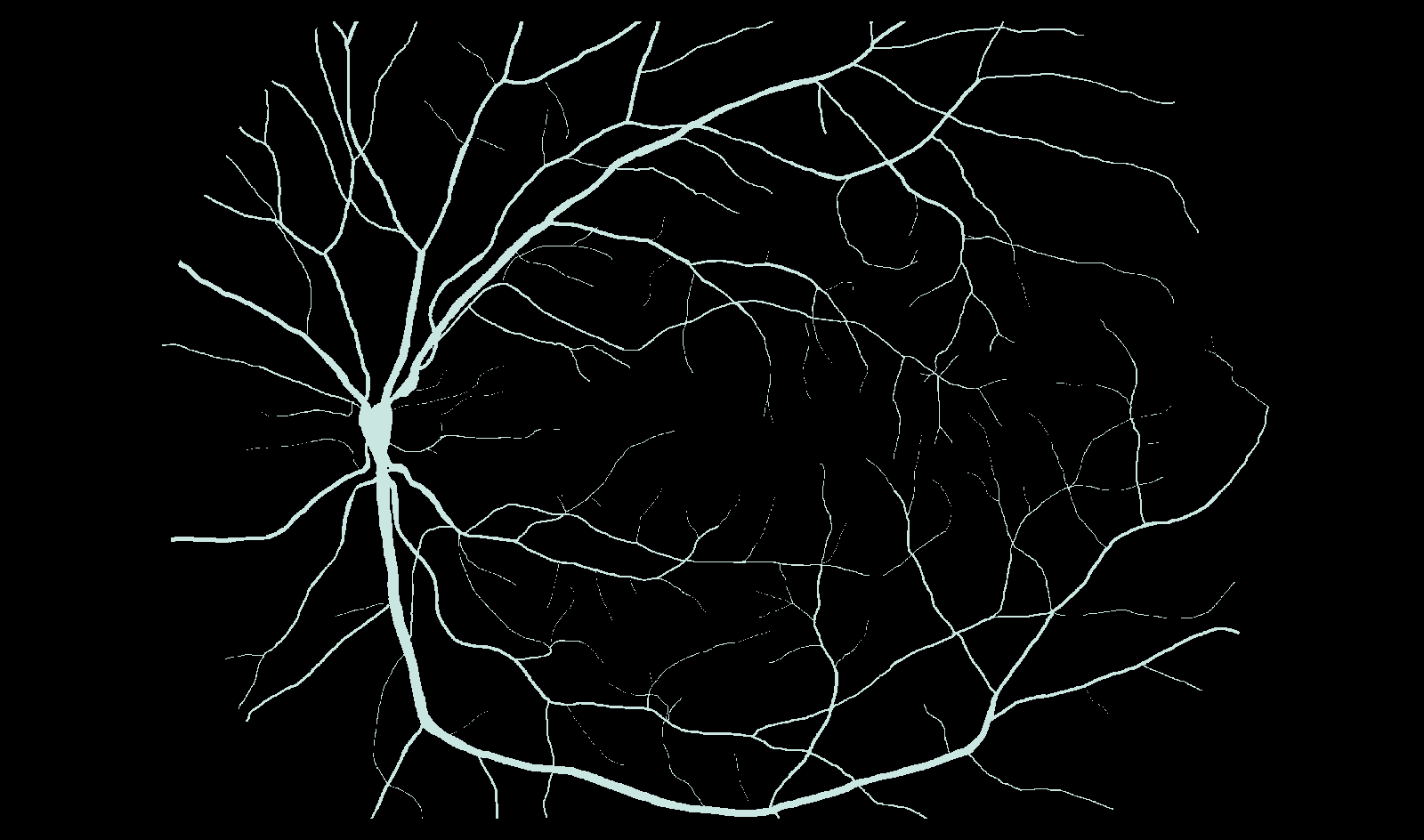

This is an example of running maskel on a 2D binary segmentation mask. The data is from the HRF (High-Resolution Fundus) image database — a manually annotated retinal vessel mask.

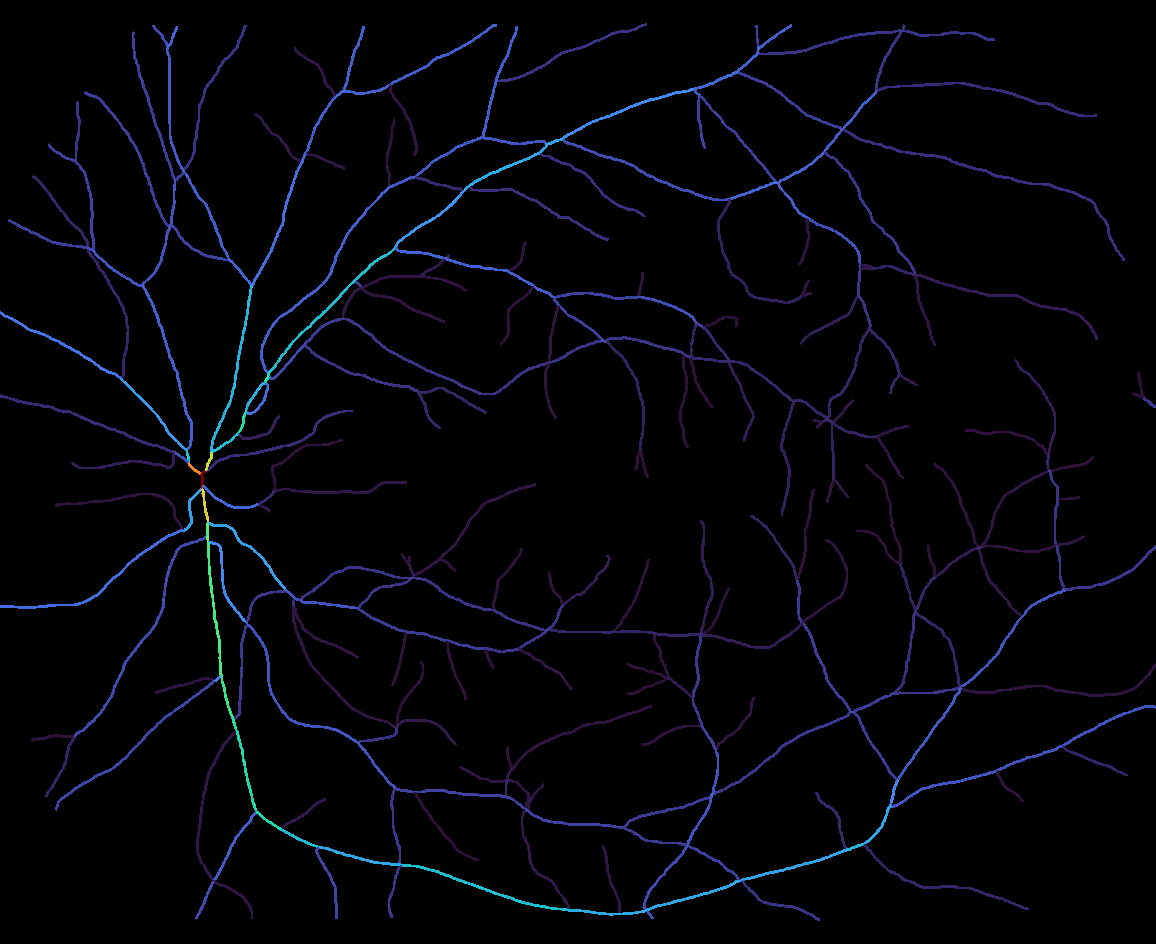

The extracted skeleton, colored here by each branch's mean radius (mean_radius in <image>_branches.csv) — rendered from the exported branch CSV for illustration, since maskel's CLI itself only writes the raw skeleton mask (optionally as a PNG, for 2D input) and data (CSVs, arrays, graphs) — never a rendered/annotated visualization like this one. Use the exported .graphml/.pkl graph, or napari-maskel, to visualize interactively.

2D multi-label mask

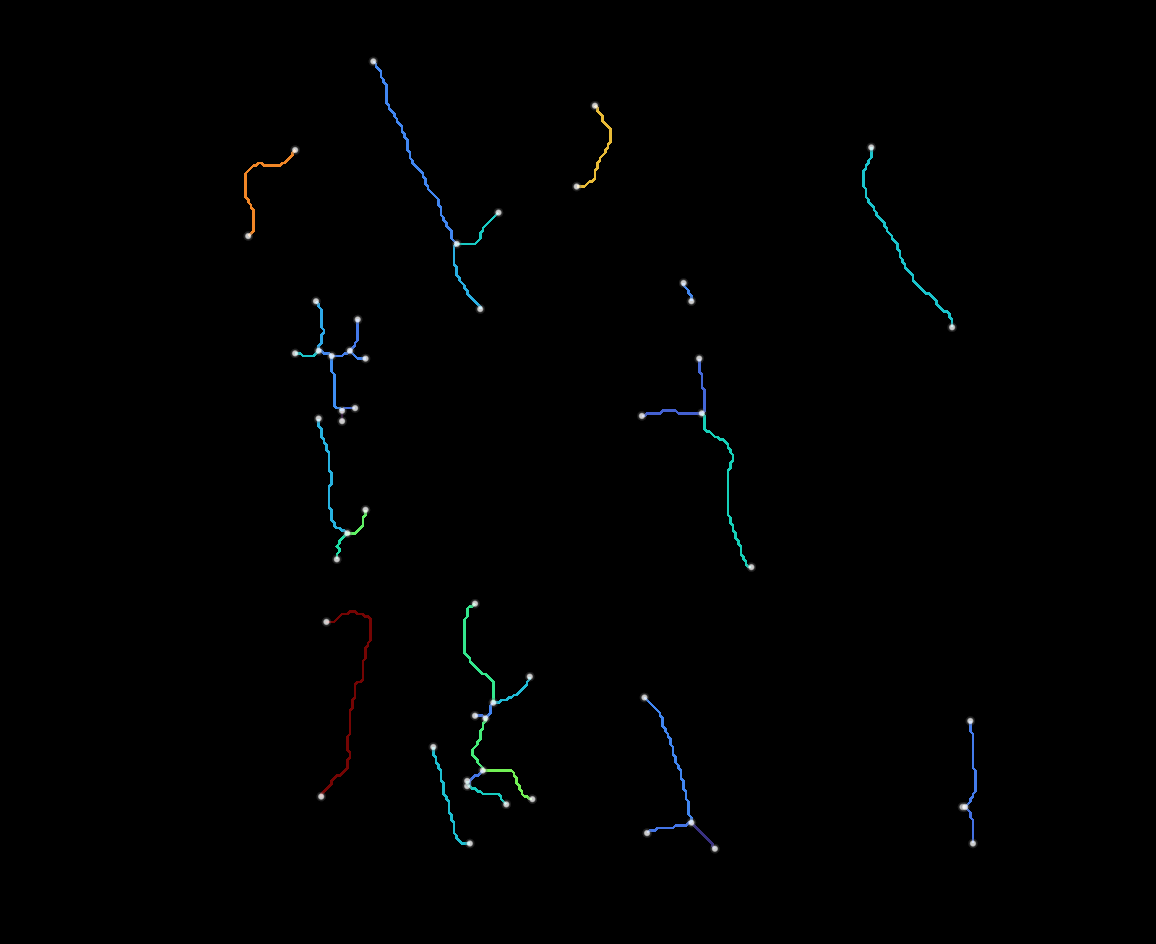

A multi-object instance segmentation map (more than one distinct nonzero label) is skeletonized independently per object — including two objects that touch, which stay correctly separate rather than merging into one skeleton. This example is the first frame of a video, MacrophageData_V2/NpyData/EMMACtrl_2021-05-19_visual_labels.npy, from Zenodo record 13929787.

Every branch, node, and summary row is tagged with the object_id it came from, so the per-object rows in summary.csv/<image>_branches.csv/<image>_nodes.csv stay consistent with the IDs in the original mask. Since maskel's CLI processes a whole batch of images in one call, pointing --input at a directory or glob of every frame in this video — with the extraction settings tuned on this one example frame — reproducibly extracts these same per-object features across the whole sequence, one row per object per frame.

General usage of the CLI

1. Create a starter config: maskel init config.json (or export one from napari-maskel's Save recipe button — see Sharing a config with napari-maskel).
2. Edit config.json to set the extraction/output parameters described below.
3. Check it's well-formed: maskel validate config.json — prints the normalized config and confirms its schema_version is supported.
4. Run it:

maskel run --input /path/to/images --config config.json --out outputs --jobs 0

Input

--input takes one or more of:

• a single file path
• a directory (every supported file directly inside it; add --recursive to also search subdirectories)
• a glob pattern (e.g. "data/*.tif"; also expanded recursively with --recursive)

Supported file extensions: .png, .jpg, .jpeg, .tif, .tiff, .bmp, .npy, .mhd. Each file is either a plain binary segmentation mask or a multi-object instance segmentation map (see Examples above for how the latter is handled). Two inputs that resolve to the same filename stem (e.g. from different folders) get a numeric suffix (_2, _3, ...) in their output names, so results never silently overwrite each other.

Output

--out is a directory that ends up containing:

• summary.csv — one row per object per image, aggregated across the whole batch
• one subfolder per input image (named after its filename stem), holding whichever per-image/per-object files are enabled under output (skeleton array, branch/node CSVs, radius matrix, GraphML/pickle graphs — see Configurable parameters below for exact filenames)

Spacing override

--spacing overrides extraction.spacing in the config for the whole run, e.g. --spacing 2.0 2.0 for 2D or --spacing 1.0 0.5 0.5 for 3D. An image whose dimensionality doesn't match the given spacing falls back to isotropic spacing for that one image, with a warning, rather than failing the whole batch.

Parallelism

--jobs/-j spawns a process pool over the input images, one process per image; 0 uses all CPU cores, and the default, 1, processes images one at a time in the main process. Ctrl-C triggers a clean worker shutdown rather than hanging.

Configurable parameters

A config JSON has two sections, extraction and output (plus a schema_version — currently 6 — that must match exactly), matching maskel.config.ExtractionConfig/OutputConfig. It's the same JSON produced by maskel init, consumed by maskel run --config, and exported/imported by napari-maskel's Save recipe/Load recipe.

Physical spacing

• extraction.spacing (list[float] or null, default null) — per-axis physical pixel/voxel size (length must match the image's dimensionality: 2 for 2D, 3 for 3D). When set, length/radius/area/volume features come out in physical units instead of pixel units. A per-image mismatch falls back to null (isotropic pixel units) with a warning rather than failing the batch. Box-counting fractal_dimension is only valid for isotropic voxels, so it's forced to 0.0 (with a warning) whenever spacing is set and anisotropic. Overridable per-run with maskel run --spacing.

Extraction layers

• extraction.branches (bool, default false) — extract per-branch features, written to <image>_branches.csv when output.write_branch_csv is also on.
• extraction.branch_color_property (str, default "tortuosity") — which branch property napari-maskel colors its branches layer by. No effect on the CLI's own output; only relevant when the config is shared with the plugin.
• extraction.branch_text (bool, default false) — whether napari-maskel overlays branch ID/length/tortuosity text on its branches layer. Likewise CLI-inert.
• extraction.nodes (bool, default false) — extract per-node features, written to <image>_nodes.csv when output.write_node_csv is also on.
• extraction.summary (bool, default true) — compute per-object summary features, written to summary.csv when output.write_summary_csv is also on.

Cleanup

• extraction.fill_holes (bool, default false) — fill holes in the binary segmentation before thinning.
• extraction.max_hole_size (int, default 0) — maximum hole area (px) to fill when fill_holes is true; 0 fills all holes.
• extraction.closing_iterations (int, default 0) — morphological closing iterations applied before thinning; 0 disables it.
• extraction.show_preprocessed (bool, default false) — whether napari-maskel adds a layer showing the mask after preprocessing. Purely a display toggle for the plugin; the CLI has no output file for the preprocessed mask.
• extraction.junction_cleanup (bool, default false) — clean up ambiguous junction pixel clusters left behind by thinning.
• extraction.cleanup_threshold_factor (float, default 2.5) — sensitivity for the above; higher values collapse larger clusters.
• extraction.prune_spurs (bool, default false) — remove short endpoint-to-junction branches that are thinning artifacts rather than real structure.
• extraction.min_spur_length (float, default 10.0) — branches shorter than this qualify as spurs; in pixel units, or physical units once spacing is set.
• extraction.spur_iterations (int, default 1) — how many times pruning repeats on its own output, since removing one spur can expose another.

Advanced features

• extraction.fractal_dimension (bool, default false) — compute the skeleton's box-counting fractal dimension as a summary feature (see Glossary). Forced to 0.0 whenever spacing is set and anisotropic.
• extraction.mask_radius (bool, default false) — estimate local vessel radius via a Euclidean distance transform of the segmentation. Required for every radius/diameter/volume/surface_area feature at every level (object, branch, node) and for output.write_radius.

Output settings

• output.write_skeleton_npy (bool, default true) — save the skeleton as <image>_skeleton.npy.
• output.write_skeleton_png (bool, default false) — save the binary skeleton as <image>_skeleton.png (skipped with a warning for 3D input).
• output.write_summary_csv (bool, default true) — write the aggregated summary.csv, one row per object per image.
• output.write_branch_csv (bool, default false) — write <image>_branches.csv (requires extraction.branches).
• output.write_node_csv (bool, default false) — write <image>_nodes.csv (requires extraction.nodes).
• output.write_radius (bool, default false) — write the per-pixel radius matrix as <image>_radius.npy (requires extraction.mask_radius).
• output.write_graphml (bool, default false) — write the skeleton graph as <image>_<object_id>_graph.graphml, one file per object (nodes = graph nodes, edges = branches).
• output.write_networkx_graph (bool, default false) — write the same graph as <image>_<object_id>_graph.pkl, a pickled networkx.MultiGraph — richer than GraphML (keeps NaN values and native Python types) but only readable from Python.

An output.write_* flag set without its required extraction.* flag is rejected outright: both maskel validate and maskel run --config raise ValueError listing every mismatched pair, rather than silently writing nothing for that flag.

Sharing a config with napari-maskel

The same config JSON works in both directions: a file written by maskel init (or hand-edited, or produced by any earlier maskel run) can be loaded straight into the napari-maskel widget with Load recipe, and a config tuned interactively in the widget can be exported with Save recipe and passed to maskel run --config for reproducible batch processing — as in the multi-label example above. Both consume exactly the same schema described in Configurable parameters, since maskel.config is the single source of truth both projects import.

License

Maskel is released under the MIT License. See LICENSE for details.
